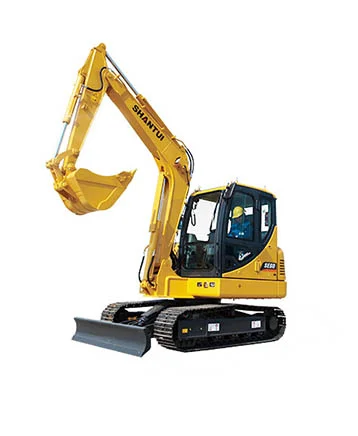

Best mini excavator SHANTUI Excavator SE60

Category:

Total weight: 5960kg
Bucket capacity: 0.22m³
Engine power: 36kw/2000rpm

Parameter

Comparative item SE60(Homemade configuration version)
Overall dimensions
Overall length (mm) 5855
Ground length (During transport) (mm) 3330
Overall height (To the top of boom) (mm) 2060
Overall width (mm) 1880
Overall height (To top of cab) (mm) 2585
Ground clearance of counterweight (mm) 710
Minimum ground clearance (mm) 300
Tail turning radius (mm) 1655
Track length (mm) 2560
Track gauge (mm) 1480
Track width (mm) 1880
Standard track shoe width (mm) 400
Turntable width (mm) 1780
Distance from slewing center to tail (mm) 1655
Working range
Maximum digging height (mm) 5785
Maximum dumping height (mm) 4075
Maximum digging depth (mm) 3850
Maximum vertical digging depth (mm) 3000
Maximum digging distance (mm) 6200
Maximum digging distance at ground level (mm) 6060
Working device minimum turning radius (mm) 2395
Maximum lifting height of bulldozer blade (mm) 385
Maximum digging depth of bulldozer blade (mm) 465
Engine
Model Kubota V2607T(China-III)
Type 4-cylinder inline and turbocharged
Displacement (L) 2.615
Rated power (kW/rpm) 36/2000
Hydraulic system
Type of hydraulic pump Variable displacement plunger pump
Rated working flow (L/min) 152
Bucket
Bucket capacity (m³) 0.18~0.22(0.22)
Swing system
Maximum swing speed (r/min) 11
Brake type Mechanically applied and pressure released
Digging force
Bucket arm digging force (KN) 29
Bucket digging force (KN) 48
Operating weight and ground pressure
Operating weight (kg) 5960
Ground pressure (kPa) 33
Traveling system
Traveling motor Axial variable displacement plunger motor
Traveling speed (km/h) 2.7/4.6
Traction force (KN) 50
Gradeability 70%(35°)
Tank capacity
Fuel tank capacity (L) 95
Cooling system (L) 8.5
Engine oil capacity (L) 9
Hydraulic oil tank/system capacity (L) 74/110

Description

SHANTUI SE60 Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications

Work comfortably

A brand-new design cab equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

Operating easily

Controls are easy to use and the new generation LED Monitor provides customizable machine operator preferences and easy to read machine information.

Small design, big performance

Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and the front blade allows for easy clean up.

Safety on the job site

Your safety is our top priority. SHANTUI Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a retractable seat belt are just a few of the safety features we’ve built into the machine.

Simple service for less downtime

Maintenance is quick and easy on the SHANTUI Excavator. Routine check points are easy to access at ground level with grouped service points.

Lower operating costs

Equipped with features such as auto idle, economic mode, and efficient hydraulics with a variable displacement pump, the SHANTUI Excavator was designed with reducing your operating costs in mind.

Unparalleled SHANTUI service support

Your SHANTUI dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your SHANTUI dealer is ready to help.
